Philadelphia Commercial Color Range 20 6x48 Solid-Color Commercial Luxury Vinyl Tile

Philadelphia Commercial Color Range 20 (style #5M330) is a nominal 6" x 48" solid-color commercial luxury vinyl tile in saturated hues, from marigold and coral to turquoise, indigo and onyx, made in the USA for wayfinding, accent bands and branded interiors. It is a heavy commercial glue-down product with a 20 mil wear layer and an ExoGuard+® finish. Instead of imitating wood or stone, Color Range 20 gives designers flat, clean color in a plank-shaped format, so stripes, borders, chevrons and color-coded zones can be cut into a floor of the same thickness and finish.

Best for: School corridors and wayfinding paths, pediatric and behavioral healthcare, branded retail and showrooms, children's museums and libraries, and corporate amenity spaces.

Colors

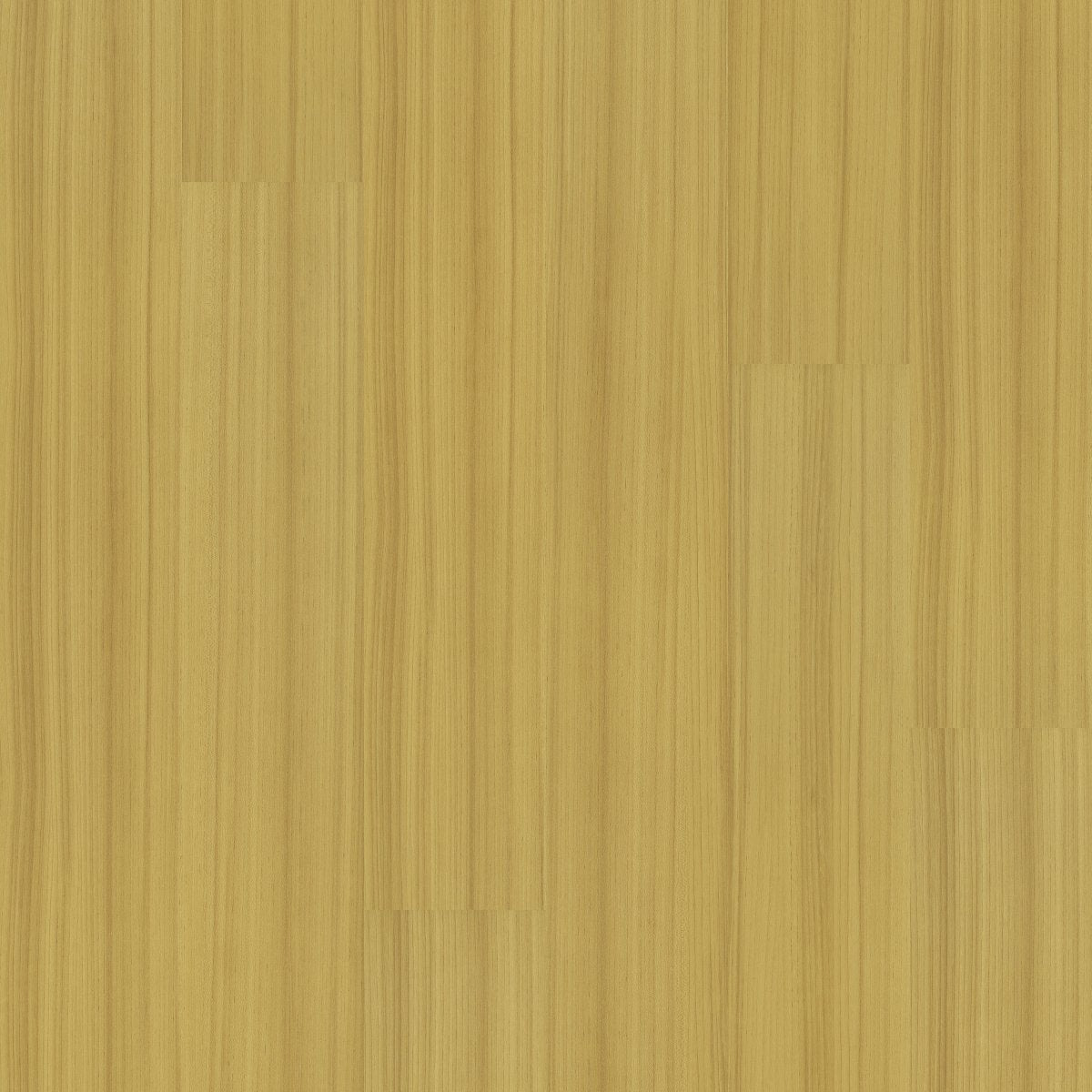

• Merigold 00230: a mustard-gold yellow that reads warm and cheerful.

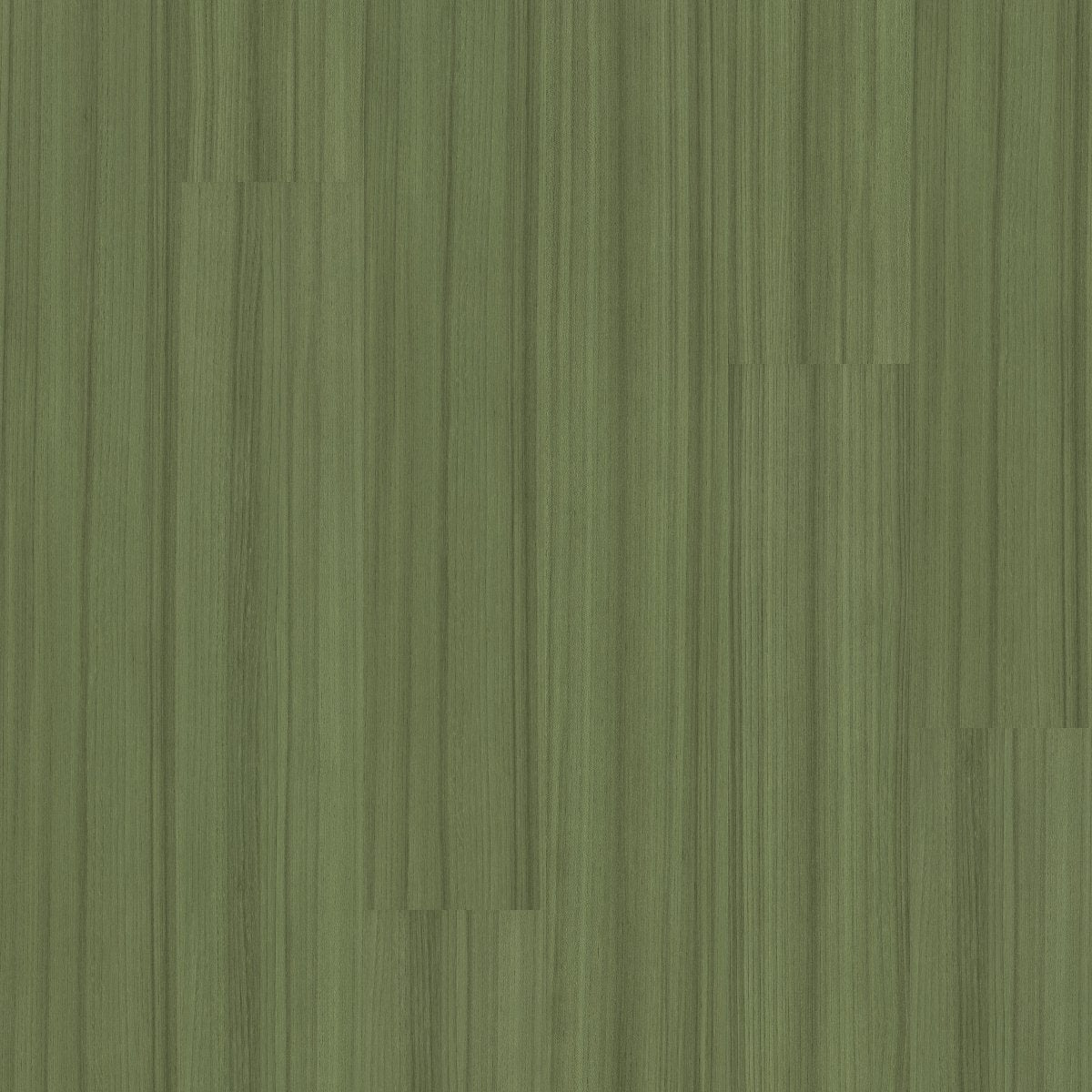

• Cactus 00350: an olive-sage green with an earthy feel.

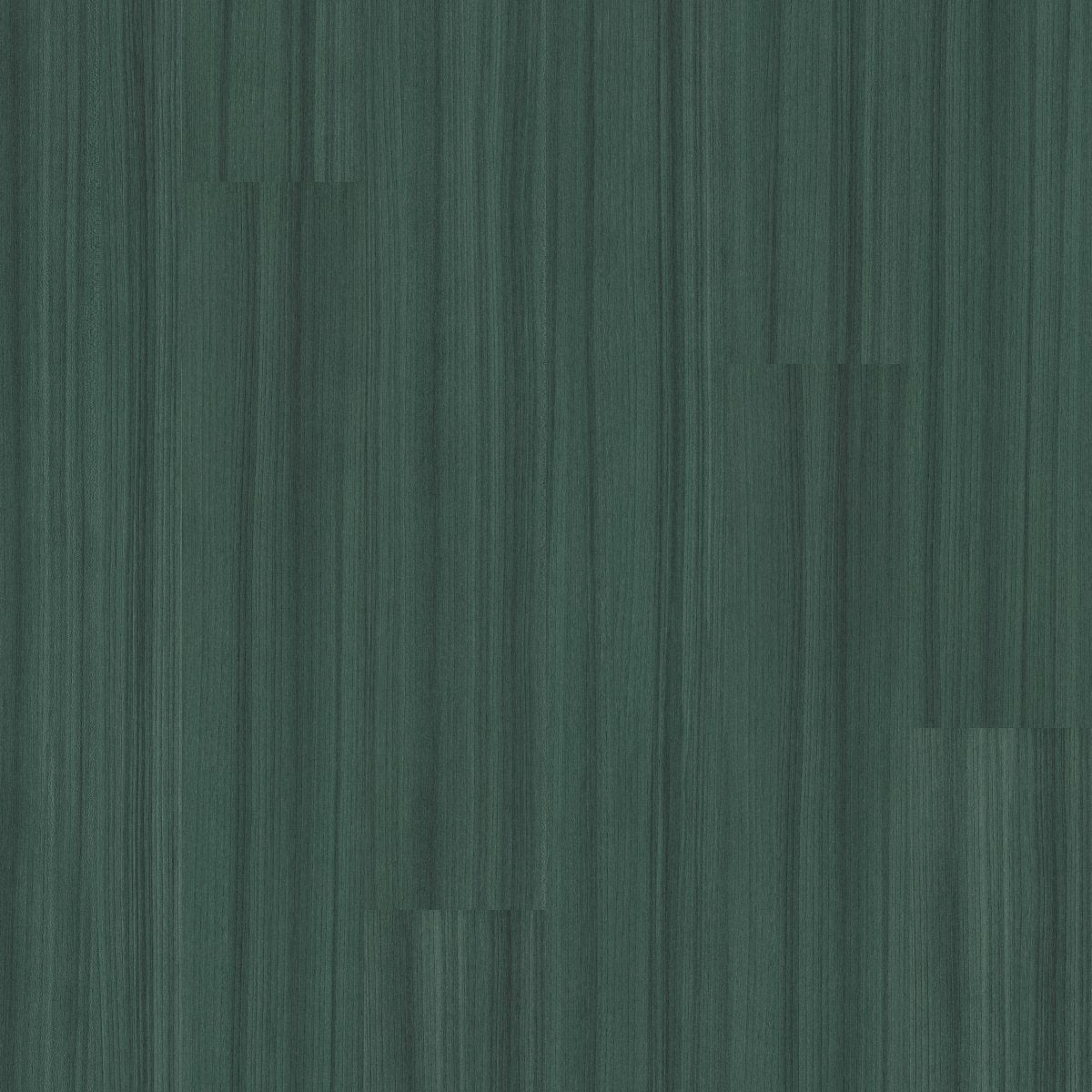

• Arbor 00360: deep forest green, almost spruce.

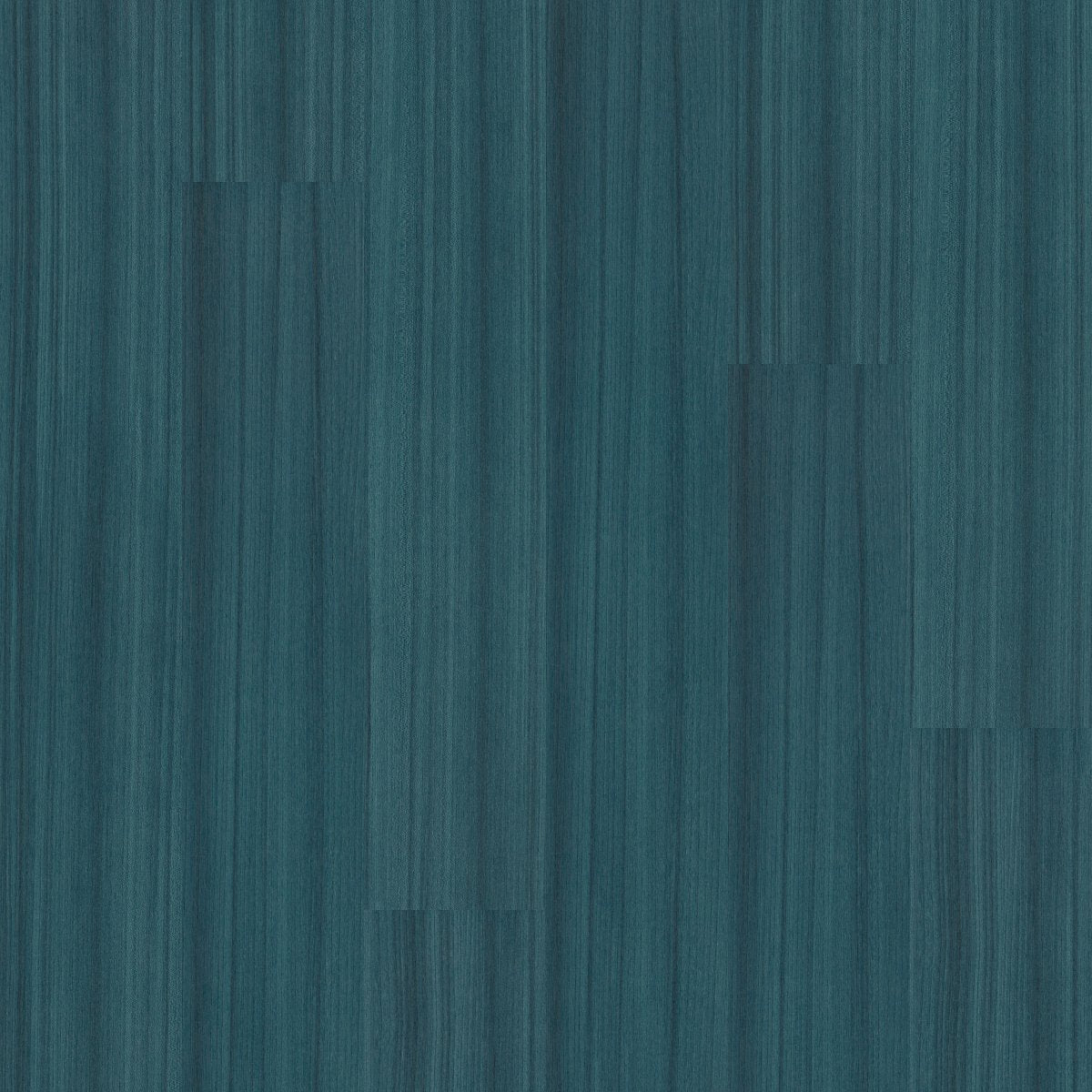

• Turquoise 00370: a dark teal blue-green, deeper than its name suggests.

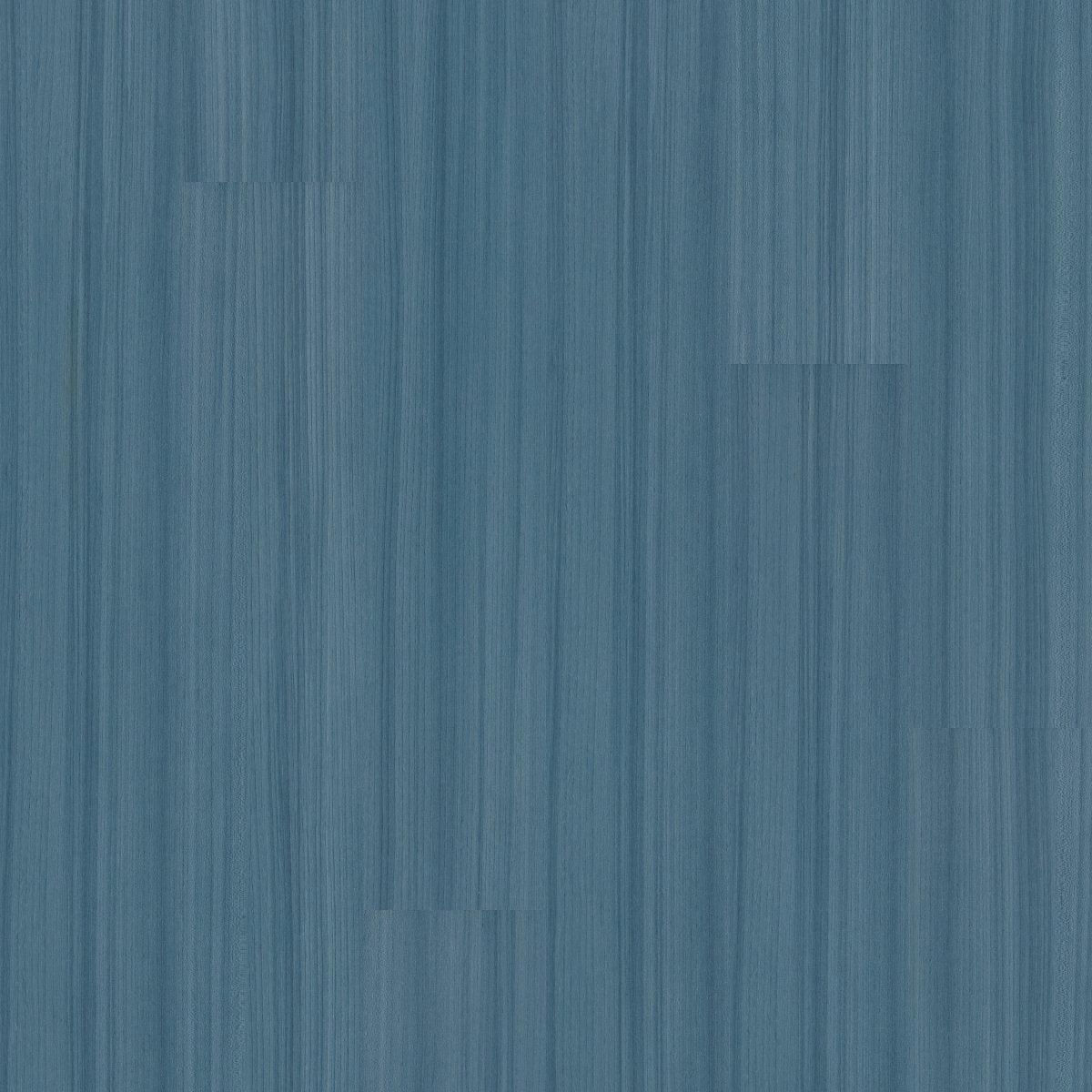

• Caribe 00400: a dusty steel blue.

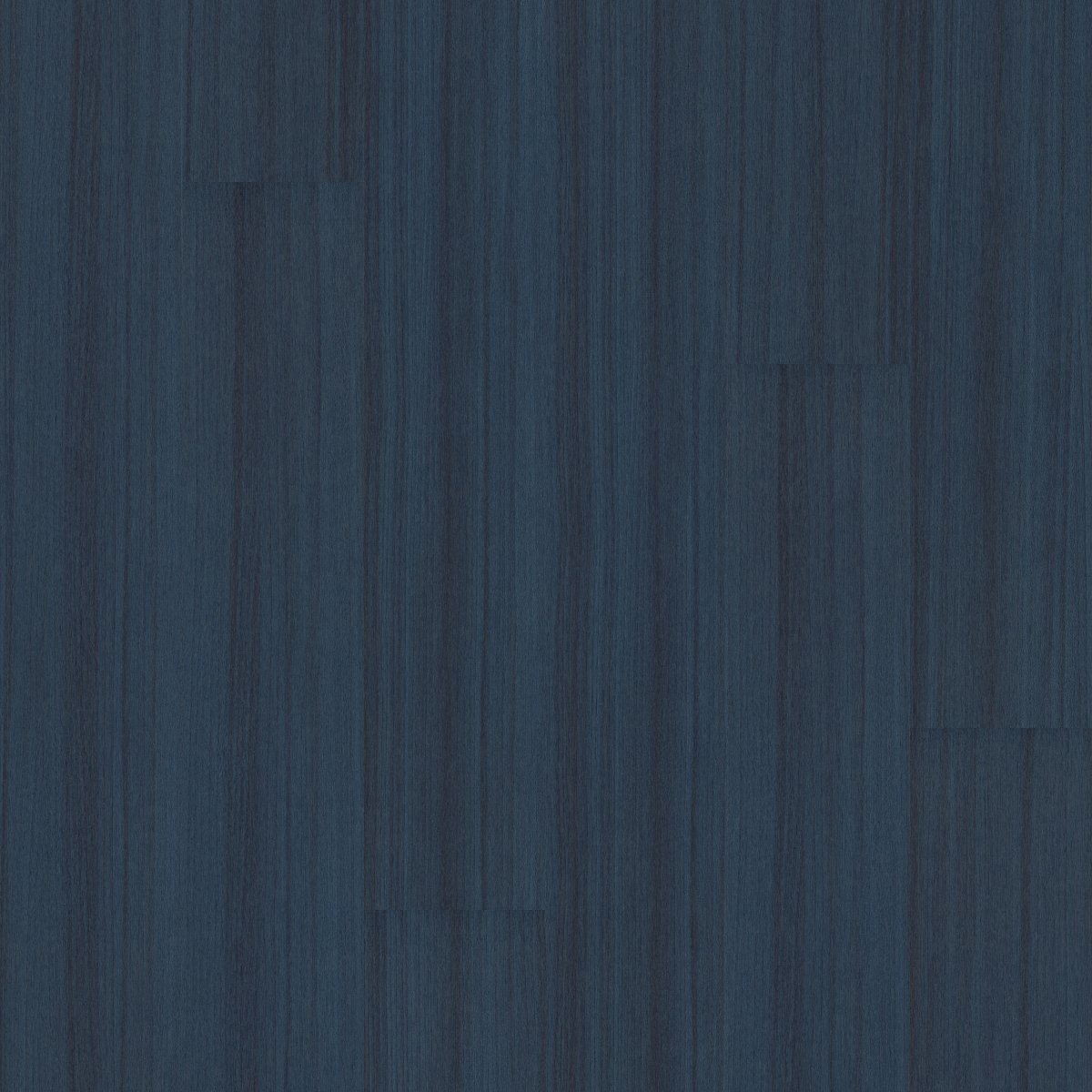

• Indigo 00450: deep navy, the darkest blue.

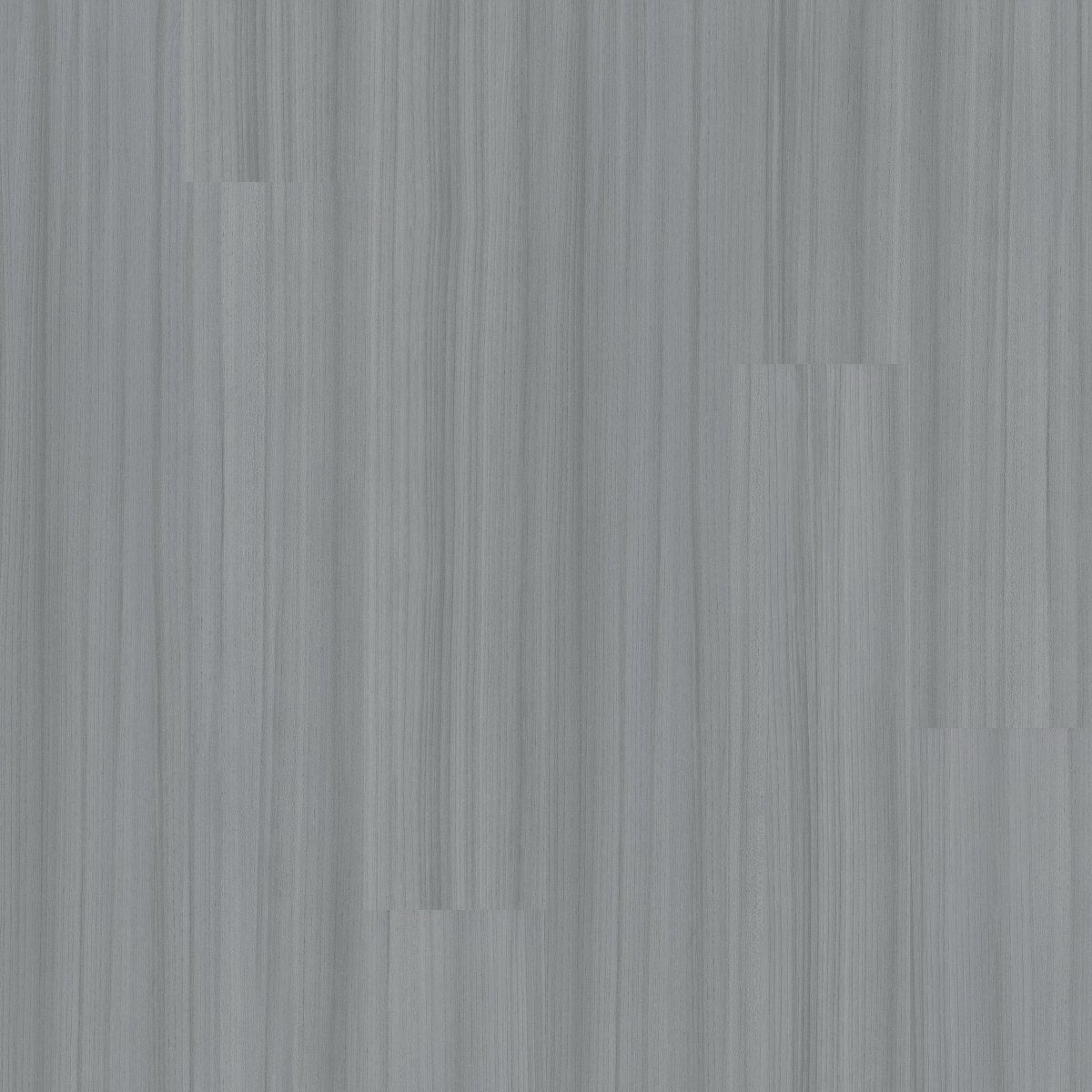

• Silver 00540: a medium neutral gray for a quiet background field.

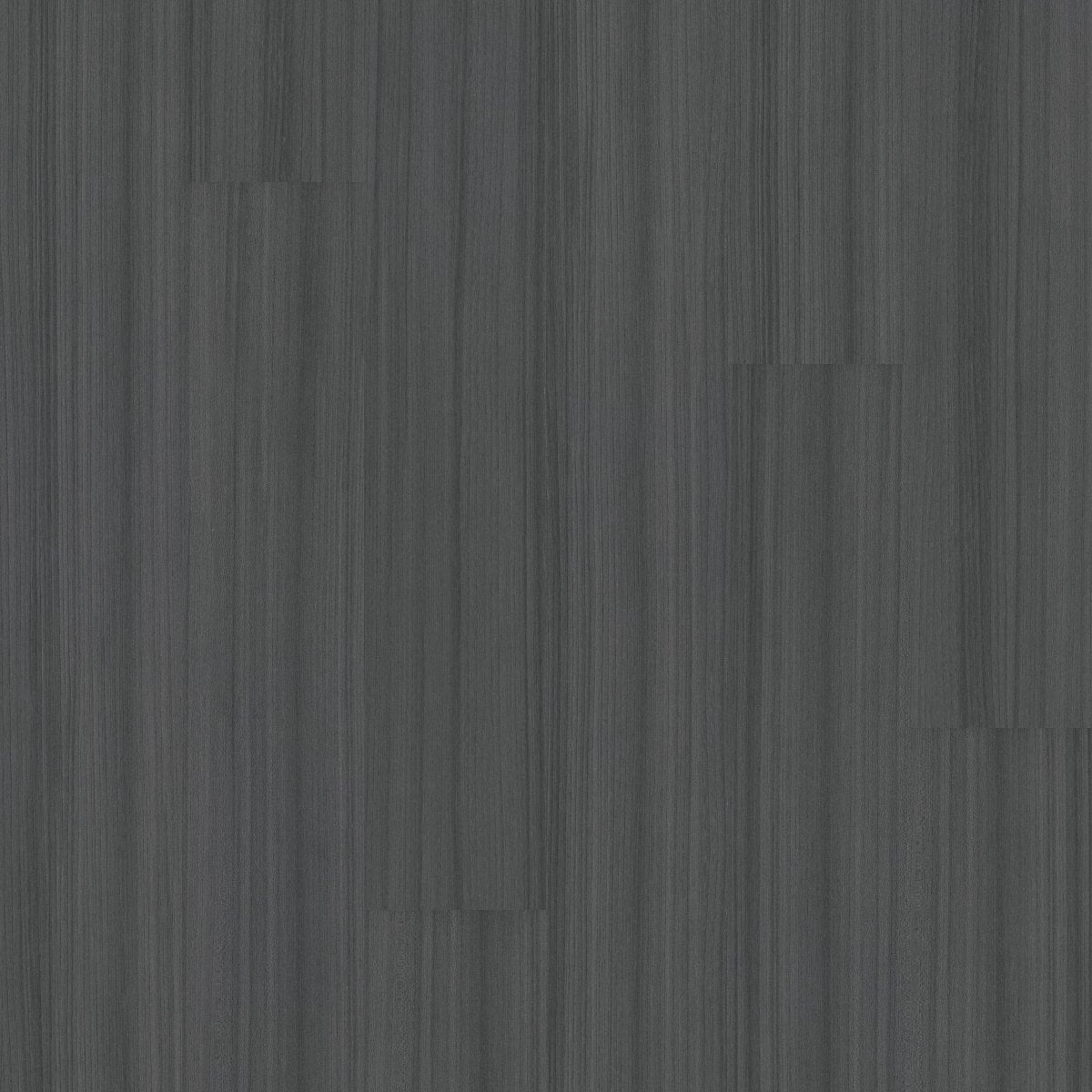

• Onyx 00580: charcoal gray, near black, for borders and outlines.

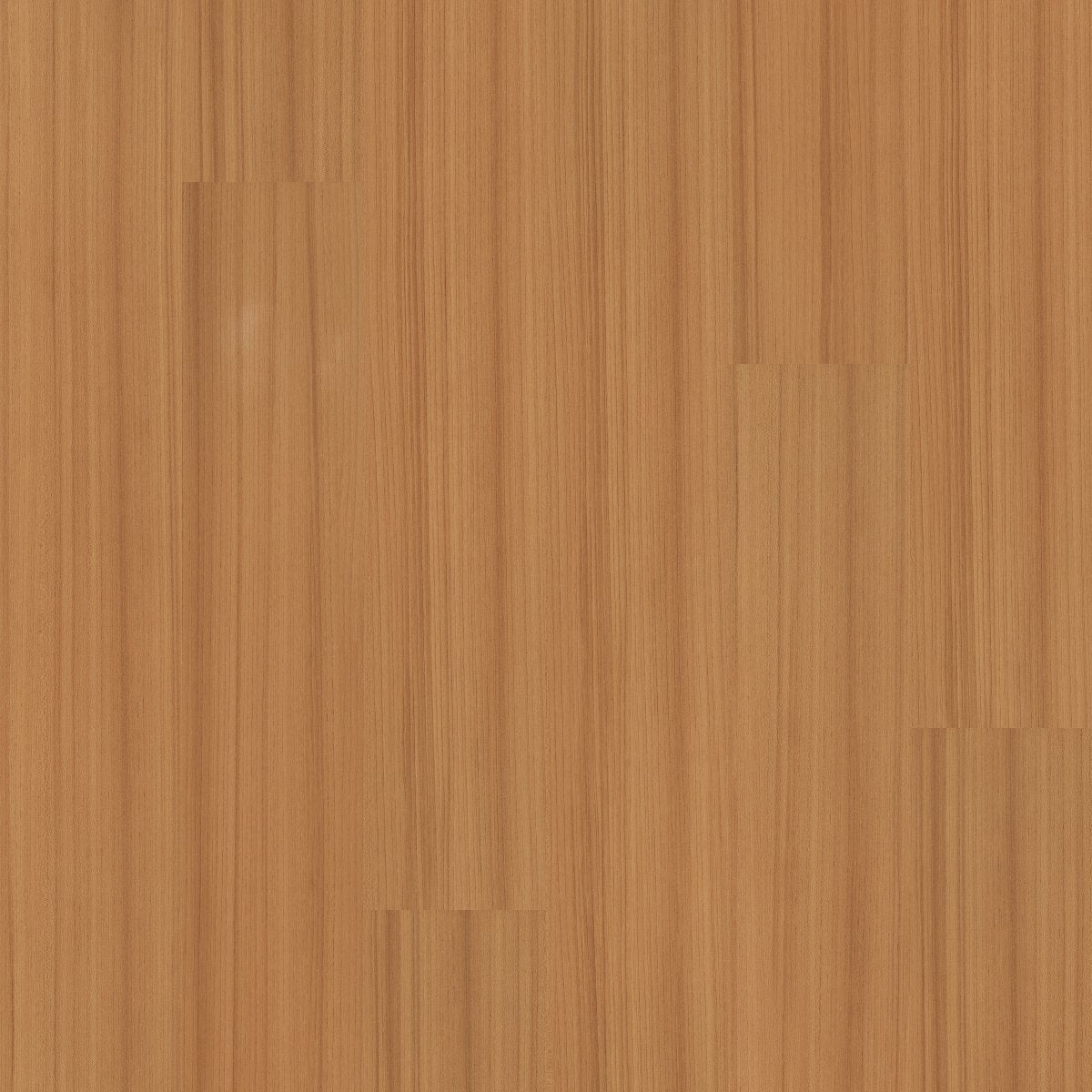

• Mandarin 00600: a burnt orange with a terracotta warmth.

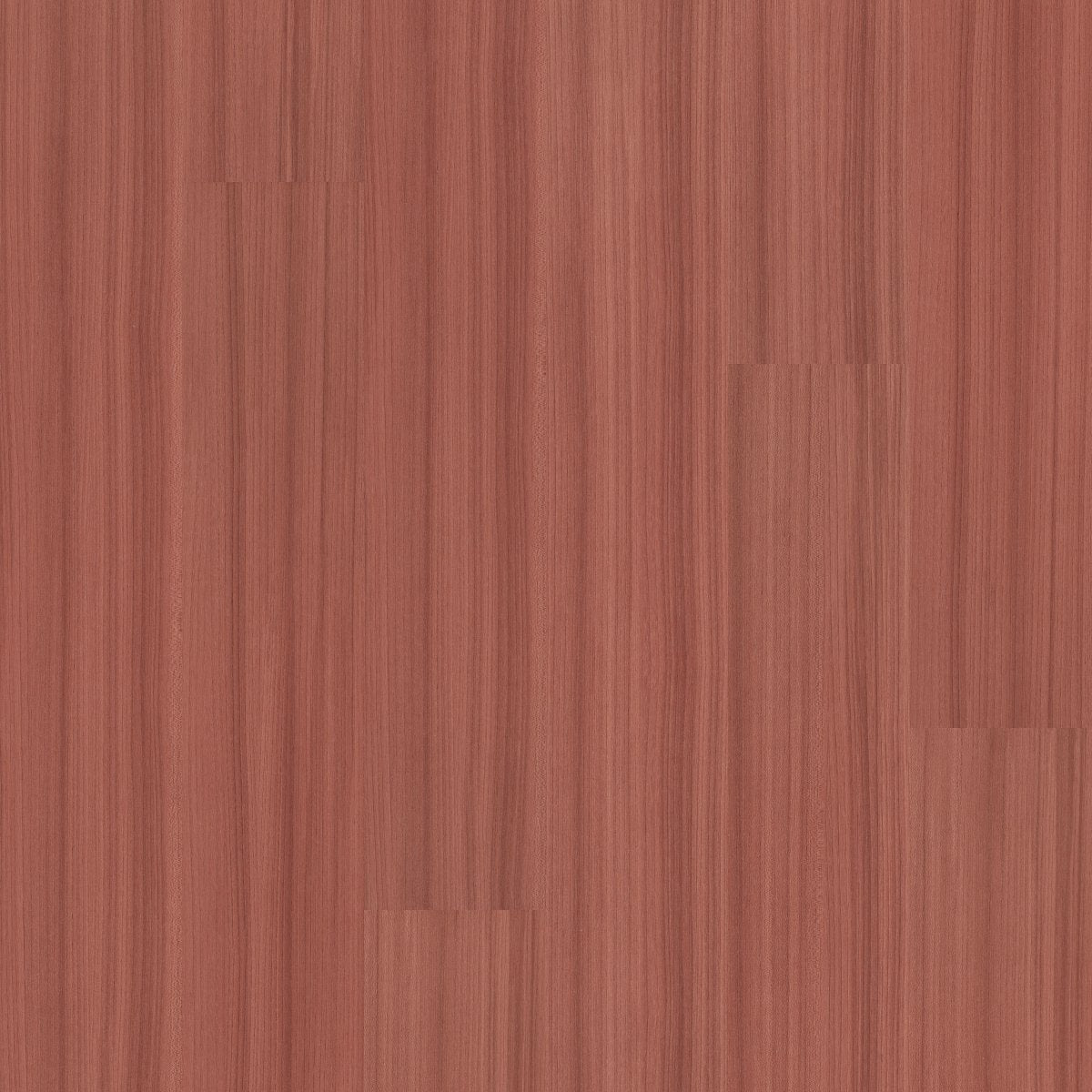

• Coral 00650: a muted brick-rose red.

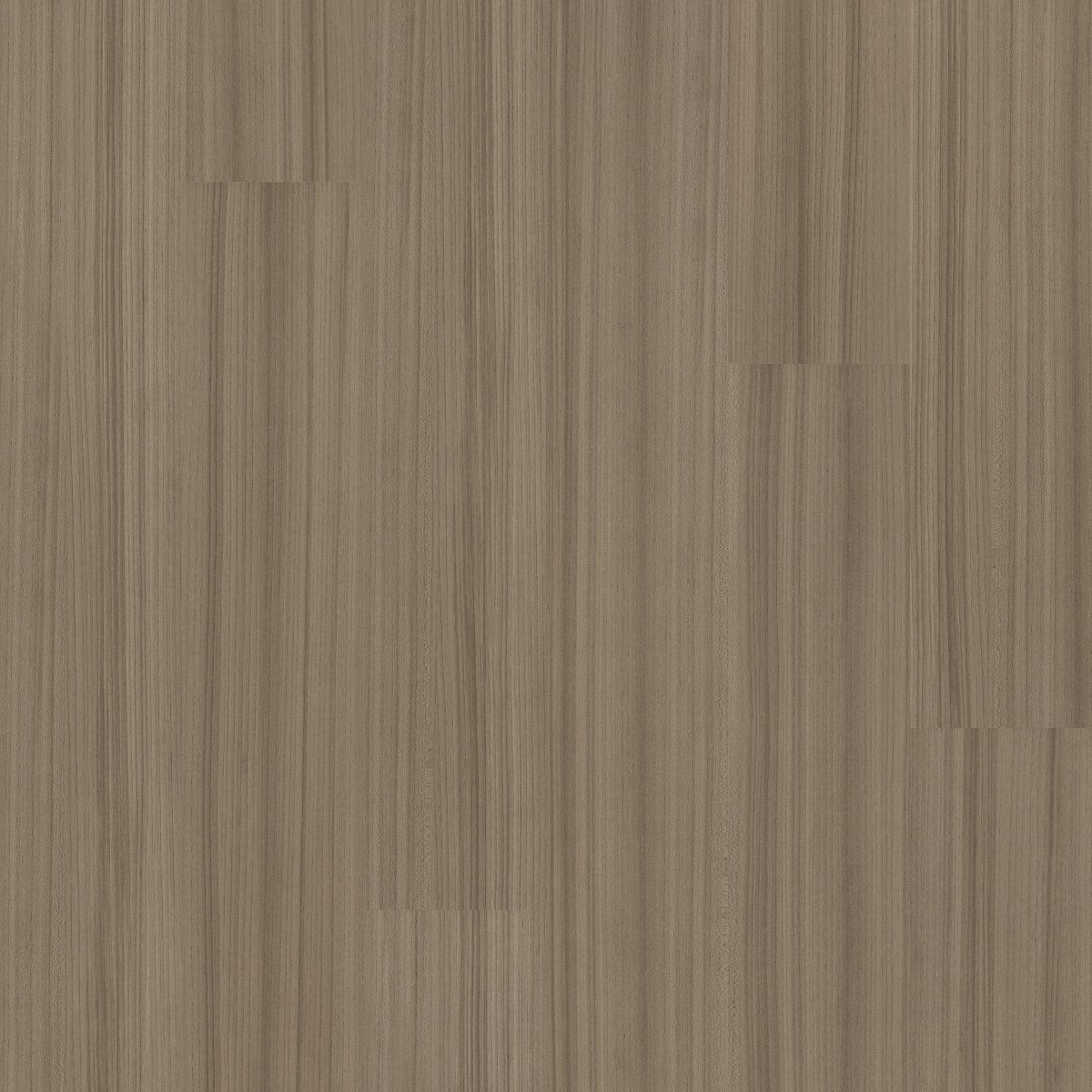

• Bistre 00710: a khaki brown that works as a warm neutral.

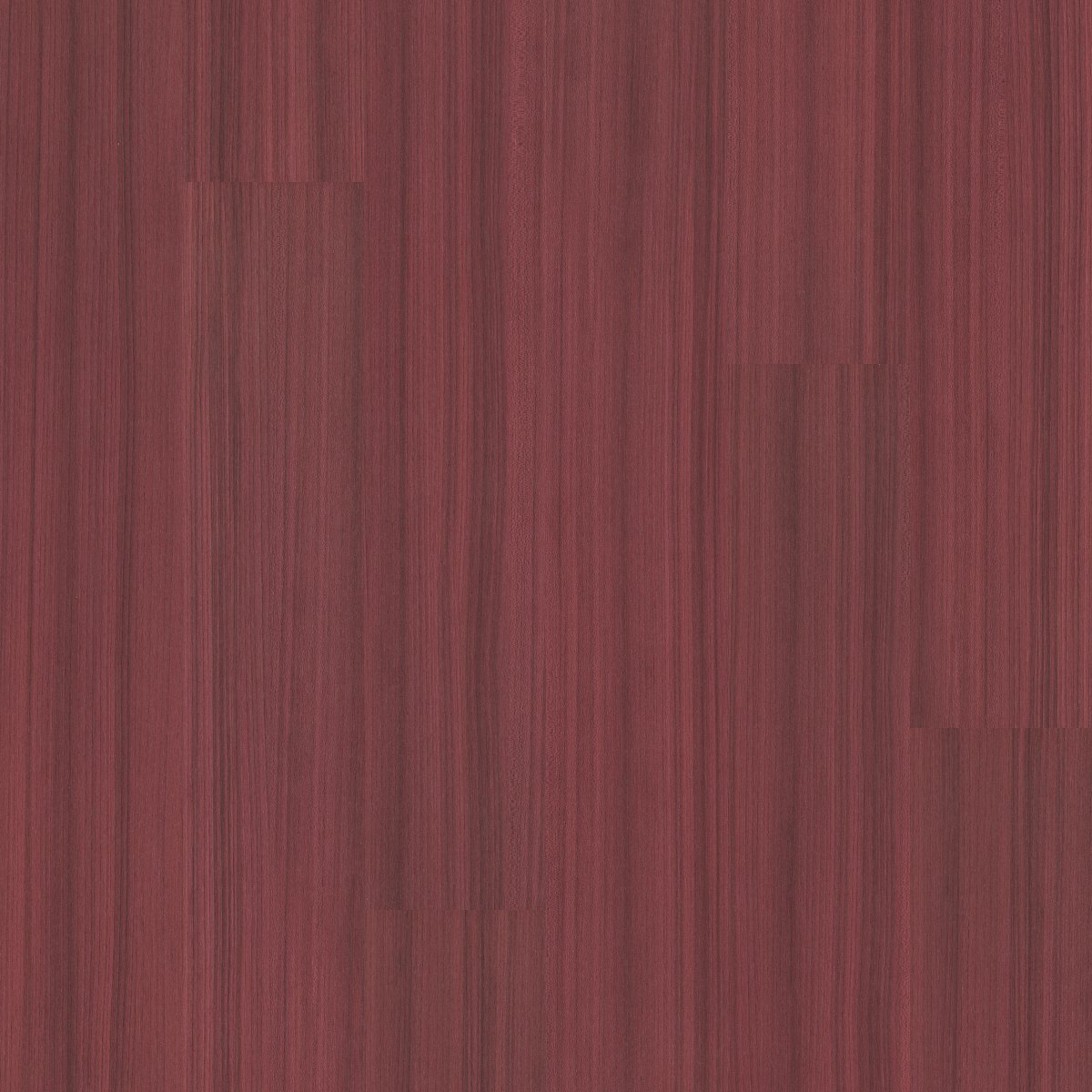

• Garnet 00850: a deep wine red.

Silver, Onyx and Bistre act as neutral grounds, while the nine other hues work as accents. Request free samples to build a color scheme.

Why Choose Color Range 20 6x48

• Solid, saturated colors for wayfinding and branding
• 20 mil wear layer for heavy commercial traffic
• ExoGuard+® finish
• Made in the USA
• Direct glue installation for crisp, permanent inlays and stripes

Installation Methods

Color Range 20 is approved for direct glue. The subfloor is coated with the specified adhesive and the tiles are set and rolled into it, so the whole floor is bonded and colored stripes or inlays stay exactly where they were laid. With solid colors, layout drawings matter more than with wood looks: snap lines for bands and borders, and dry-lay complex patterns before spreading adhesive. Subfloor preparation and moisture testing should follow the Color Range 20 spec sheet and Shaw's installation instructions.

Frequently Asked Questions

What is Color Range 20 used for? Philadelphia Commercial Color Range 20 is a solid-color vinyl tile used for wayfinding, accent bands, borders and branded spaces in schools, healthcare and retail.

What wear layer does Color Range 20 have? Color Range 20 has a 20 mil wear layer for heavy commercial traffic, finished with ExoGuard+®.

Is there a heavier-duty Color Range? Yes. Color Range 30 is the heavier-duty version of the line and comes in the same 12 colors and 6x48 size as Color Range 20.

Can Color Range 20 be combined with wood-look vinyl? Yes, if the products are compatible in thickness and adhesive. Many designers inset Color Range 20 stripes into a neutral field; confirm with the spec sheets of both products before mixing.

Product Specs

• Style: Color Range 20 #5M330
• Brand: Philadelphia Commercial (Shaw Industries)
• Type: Luxury Vinyl Tile
• Tile Size: 5.96" x 48" (nominal 6" x 48")
• Look: Solid color
• Construction: Heavy Commercial Luxury Vinyl Tile
• Wear Layer: 20 mil
• Finish: ExoGuard+®
• Colors: 12
• Installation Methods: Direct Glue
• Made In: USA
• Minimum Order: 250 sq. ft.
• Complete Specs: View spec sheet
• Warranty: View warranty

Specifier Tips

For school wayfinding, assign one Color Range 20 hue per wing or grade, such as Caribe, Cactus and Merigold, and run a two-plank stripe down the corridor to each area. Use Silver as the main field and Onyx to outline entries and stairs. In healthcare, softer tones like Cactus and Caribe guide visitors without overwhelming patients, and dark Indigo or Garnet are best kept to narrow bands.
